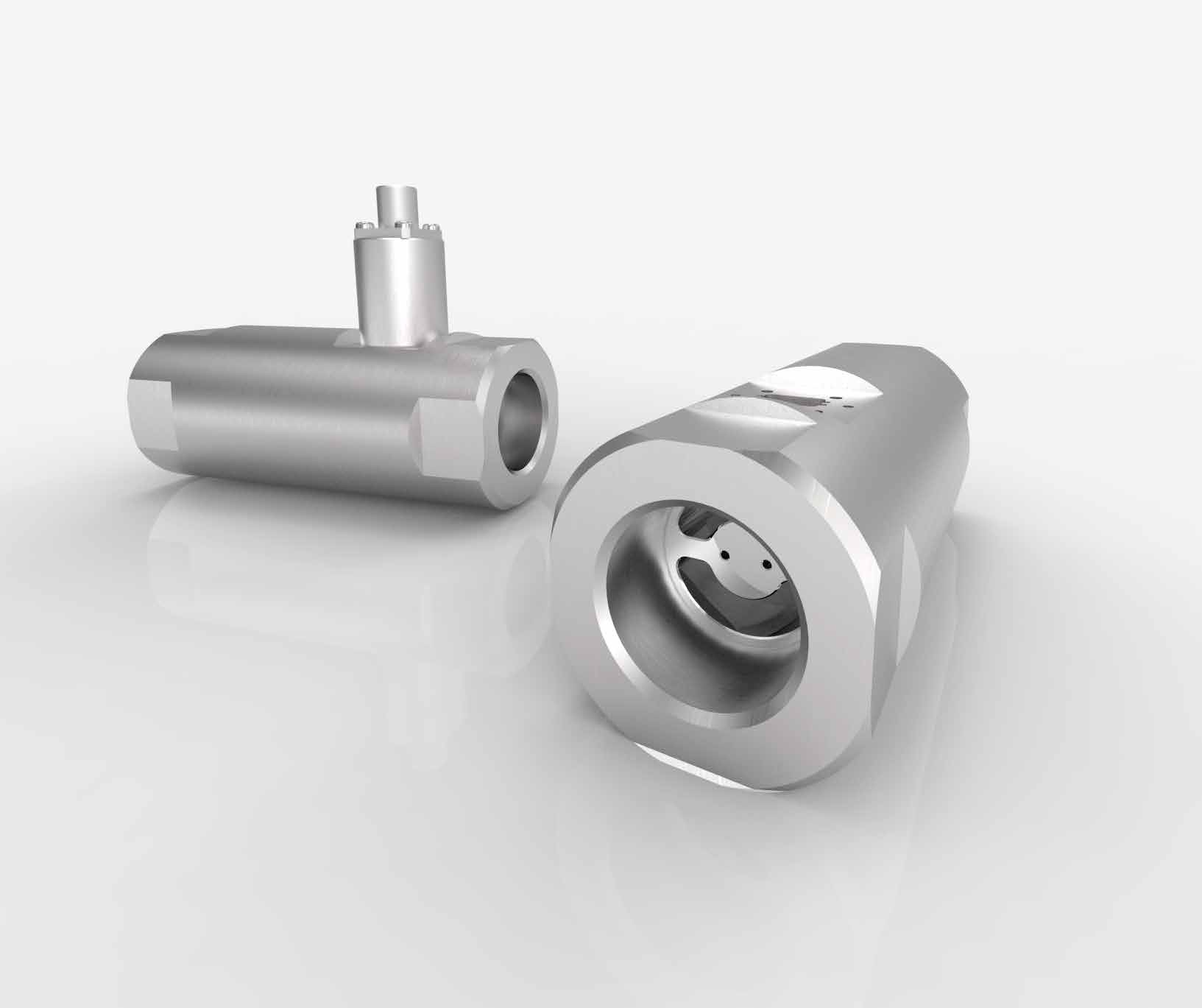

Flowmeter Model FM20
High-Precision Passive Flow Measurement
The FM20 flowmeter utilizes a passive measurement method, where fluid flow drives a precision screw mechanism. A high-resolution sensor detects the rotation angle of the screw, producing pulse signals proportional to the volume flow rate.
Key Features
✅ High Accuracy
Measurement range of 2ml/s to 8ml/s with ±5% repeatability.
✅ Durable Construction
Stainless steel body with polyurethane, epoxy resin, or silicone compatibility.
✅ Robust Design
Handles high-viscosity fluids (25,000–500,000 cps) and pressures up to 3000 psi.
✅ High Resolution
Encoder with 1280 pulses per revolution for detailed flow data.
✅ Compact & Efficien
Approx. 3ml/rev screw specification; total weight 3.5kg.
✅ Low Pressure Loss
Ideal for sensitive flow conditions.
✅ Electrical Protection
Includes reverse polarity, short-circuit protection, and stable A/B phase pulse output.
✅ Wide Temperature Range
Operates in environments from -40°C to 85°C.

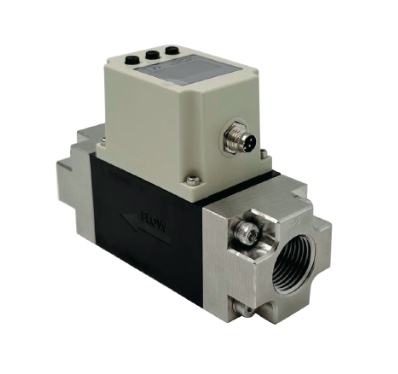

TC6200 Vortex Flowmeter
Reliable, Accurate, and Built for Industrial Demands
The TC6200 Vortex Flowmeter is engineered for precise flow measurement in industrial pipelines. With no moving parts and stable performance across varying conditions, it's a dependable solution for monitoring liquids, gases, or steam.
Key Features
✅ High Accuracy
Wide measuring range with long-term calibration stability.
✅ Low Pressure Loss
Designed for minimal energy loss in the system.
✅ Highly Reliable
No mechanical wear parts = less maintenance and downtime.>
✅ Unmatched Stability
Performance remains consistent regardless of fluid density, temperature, or pressure.
✅ Smart Connectivity
Supports both analog output and RS-485 digital communication for easy integration with modern systems.
✅ Rugged Design
Operates reliably in -20°C to +80°C temperature range.

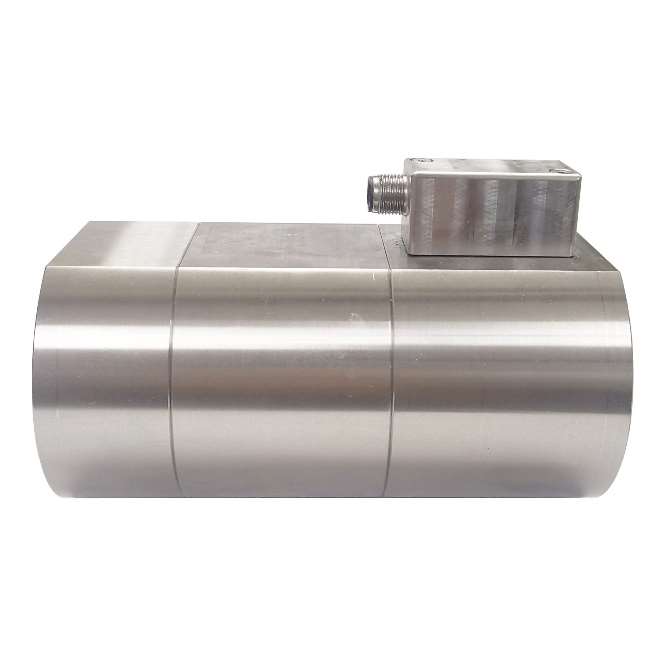

HFM20K Twin Screw Flow Meter
Key Features
✅ Performance
✔️ Flow Range: 0.04 to 40 l/min
✔️ K-Factor Options: 33 / 66 / 132 / 264 Imp/ml
✔️ Accuracy:
Linearity: ±0.5% of reading
Repeatability: ±0.1% of reading
✔️ Pressure Rating:
Stainless Steel housing: Max 400 bar
Aluminum housing: Max 350 bar
✔️ Viscosity Range: 5 to 1,000,000 mm²/s
✅ Mechanical Design
✔️ Process Connection: G3/4” (internal thread) Inlet and Outlet
✔️ Housing Materials: Stainless Steel 1.4305 / Aluminum
✔️ Screw Material: Stainless Steel 1.4122 with DLC coating
✔️ Shaft Coating: Tungsten Carbide
✔️ Seal Options: TPFE / FKM / EPDM / FFKM
✔️ Weight: Approx. 2.5 – 6 kg (depending on material)
✅ Installation Highlights
✔️ Designed for bidirectional flow (calibrated direction for best accuracy)
✔️ Flexible mounting positions — recommended vertical (bottom-up) for highest precision
✔️ Pre-installation filter (100-micron) recommended to protect the flowmeter
✔️ System calibration recommended during commissioning or when fluid changes
